The MXCW640 Wireless Conference Unit combines a microphone, loudspeaker, and user controls in an integrated wireless unit that complements any meeting space. Wireless convenience eliminates the need to drill holes or route cables, and makes setup for temporary meetings or in rooms with flexible seating quick and easy. A smart rechargeable Li-Ion battery (included) lasts over 11 hours, and a choice of gooseneck microphones provides excellent sound voice capture.
- 4.3 inch color touchscreen displays user controls, voting, or meeting information
- 10-pin modular lockable connection for MXC-series gooseneck microphones
- Built-in loudspeaker remains on when microphone is activated
- Speak and mute/function buttons with LED status indicators
- NFC ID card slot for participant identification
- Dual 3.5mm headphone jacks with volume controls
- SB930 removable rechargeable Li-Ion battery (included) provides over 11 hours of runtime
The MXCW640 Wireless Conference Unit brings wireless convenience to discussions and conferences. The unit can be configured for Chairman, Delegate, Listener, or Ambient Microphone operation and supports multiple microphone activation modes to suit different meeting styles.
The 4.3-inch color touchscreen provides easy access to meeting information, including the speaker list, voting, and interpretation channel selection. The 10-pin modular connection accommodates MXC-series gooseneck microphones and can be locked for added security. The built-in loudspeaker provides high intelligibility and remains on even when the microphone is active.
Speak and mute/function buttons provide positive feedback when pressed and include LED status indicators. An NFC ID card slot allows identification of meeting participants. Dual 3.5mm headphone jacks with individual volume controls provide comfortable listening to interpretation channels or floor audio through headphones or earphones.
The MXCW640 operates for over 11 hours on a fully-charged battery. The SB930 rechargeable Li-Ion battery (included) slides into the rear of the conference unit, and is removable for charging in the MXCWNCS networked charging station. A micro-USB port allows the battery to be charged while installed, while the conference unit is operating.
Related Products
SB930
Rechargeable Battery
Rechargeable Li-Ion Battery for MXCW640 Wireless Conference Unit
Microflex Complete Wireless
Digital Conference Systems
Table array microphone utilizes Steerable Coverage technology to capture pristine audio around conferencing tables of various sizes and shapes.

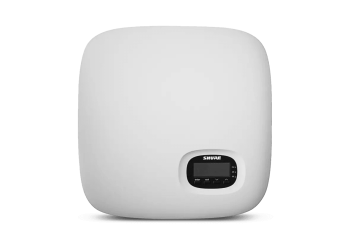

MXCWAPT
MXCWAPT Access Point Transceiver
Access Point for Microflex Complete Wireless conference system. Controls up to 125 MXCW640 wireless conference units.

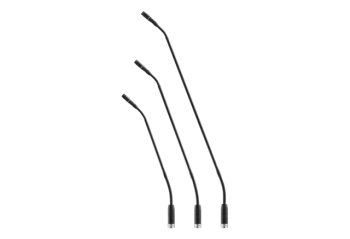

MXC416 / MXC420 / MXC425
Gooseneck Microphones
Gooseneck Microphone for MXC, MXCW Conference Units
MXC416DF / MXC420DF / MXC425DF
Dualflex Gooseneck Microphones
Dualflex Gooseneck Microphone for MXC, MXCW Conference Units
SB930
Rechargeable Battery
Rechargeable Li-Ion Battery for MXCW640 Wireless Conference Unit
Documentation
Architect Specifications
Spec Sheet
Brochure
Software & Firmware
SUU
Shure Update Utility streamlines the process of updating the firmware and software of compatible Shure products. Features include Windows and Apple operating system support and the ability to update hardware for various Shure products and systems.

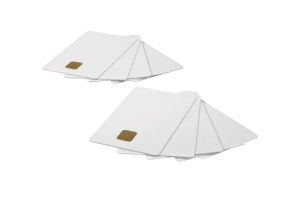

The Shure NFC Programming Application is a free tool that allows you to program NFC identification cards with a meeting participant’s first and last name. When the participant inserts their NFC ID card into a compatible MXC-series or MXCW-series conference unit, they will be identified by name instead of seat number. The NFC Programming Application requires the ACR1252U contactless reader/writer/programmer manufactured by Advanced Card Systems, Ltd. Find An Answer
